Broadcaster Camera View
The Broadcaster Camera View combines the livestream preview with the on screen controls and remote cameras.
Preview
The livestream preview shows exactly what the audience sees, including the ScoreBug, celly stickers, messages, and the brand.
All on-screen controls are only visible on your screen.
Control Bar
Use the top control bar to start or pause publishing, mute audio, stop, and monitor stream state. Learn more about the Control Bar.
Audio
Audio uses a wired or Bluetooth headset when connected; otherwise it uses the built-in microphone. The built-in microphone picks up a lot of ambient noise. The best results overall come from a wired setup.
The mute button shows a muted icon on the stream while audio is muted. Size and position are configurable in the Control Options panel below.
Quick Control Bar
Use the Quick Control Bar to start and stop the clock and clear penalties without opening the full clock panel.
Elapsed Timer
Use the Control Options panel to show or hide an elapsed stream timer for an exact timestamp on the stream. There is an option to view it only on the Broadcaster Camera View or to also send it out on the stream.
Zoom
Open the Zoom slider on the right edge to adjust magnification. Preset buttons let you jump between near, medium, and far framing.

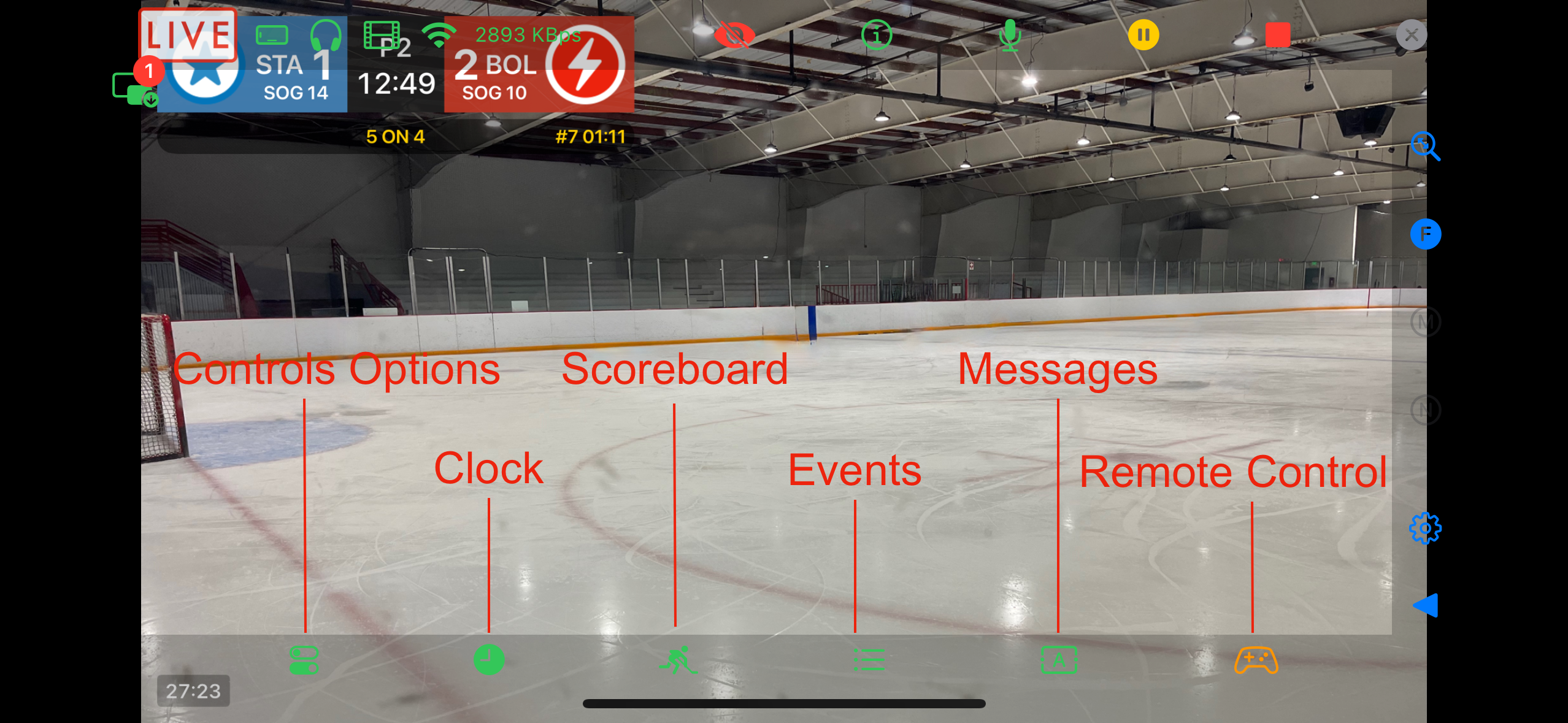

Control Panels
Open panels along the bottom edge to manage:
- On screen control options like the mute overlay, recording timer, and other control settings (Control Options Panel)
- Clock, sport-specific clock controls (Clock Panel)
- Scoreboard, including sport-specific states (Scoreboard Panel)
- Sport-specific event prompts (Events Panel)
- Custom messages and Celly Stickers (Messages Panel)
- Remote Control status and PIN (Remote Control Panel)
Remote Cameras
When Remote Cameras are configured, a Camera List icon appears. Tap it to show or hide the list of remote cameras. Tap a camera thumbnail to switch the broadcast to that camera.
Tap the PiP icon next to a thumbnail to view a larger preview (3× size). A disconnected camera is shown with a slash icon and can’t be selected until the device connects.
